classic
The classic screw and bolt product range:
from “Small” to “Standard” to “Long” and “Bit Bolts”
achill is its trading partners’ supplier of choice when it comes to procuring unusual dimensions and difficult-to-find hexagon socket screws and hexagon head screws and bolts for peripheral and niche requirements.
The full-range concept includes, among other things, screws and bolts with metric ISO threads of M 1.6 to M 56 in grades 8.8 to 10.9 and 12.9. The fasteners come with different coatings, such as Geomet or black zinc-plated, all available and delivered within 24 hours. Other versions are also available at short notice.
The table lists more DIN and ISO fasteners:
| DIN 125 Fo.A | steel / zinc plated |
6,4 - 25 |  |
Washer | ||
| DIN 912 | 08.8 | 10.9 | 12.9 | M 1, 4 - M 42 |  |
Hexagon socket head cap screw |
| DIN 913 | 45H | M 3 - M8 |  |
Hexagon socket set screw with flat point | ||
| DIN 914 | 45H | M 3 - M8 |  |
Hexagon socket set screw with cone point | ||
| DIN 915 | 45H |  |
Hexagon socket set screw with pin | |||
| DIN 916 | 45H |  |
Hexagon socket set screw with ring cutter | |||
| DIN 931 ISO 4014 |
08.8 |
10.9 |
12.9 |
M 4 – M 56 |
 |
Hexagon head bolt |
| DIN 933 ISO 4017 |
08.8 |
10.9 |
12.9 |
M 3 - M 48 |
 |
Hexagon head bolt |
| DIN 934 | 8 | M 5 - M 36 |  |
Hexagon Nut | ||
| DIN 6921 | 08.8 | M 5 - M 12 |
 |
Hexagon head bolt with flange | ||
| DIN 960 ISO 8765 |
10 |
M 12 - M 24 |  |
Hexagon head bolt with fine pitch | ||
| DIN 961 ISO 8676 |
10 | M 12 - M 20 |  |
Hexagon head bolt with fine pitch | ||
| DIN 975 | 08.8 |  |
Threaded rods | |||
| DIN 985 | 8 | M 6 - M 20 |  |
Prevalling torque type hexagon nut with non metallic insert, low type | ||
| DIN 6912 | 08.8 | 10.9 | M 4 - M 20 M 6 - M 20 |
 |
Hexagon socket head cap screw with low head and centre | |
| DIN 6921 | 08.8 | M 5 - M 12 |  |
Hexagon flange bolt | ||
| DIN 6923 | 8 | M 6 - M 12 |  |
Hexagon flange nut | ||
| DIN 7991 ISO 10642 |
08.8 08.8 |
10.9 10.9 |
M 2 – M 24 M 2 – M 24 |
 |
Hexagon socket countersunk head screws | |
| ISO 7380-1 | 10.9 | M 3 - M 12 |  |
Hexagon socket button head scews | ||
| ISO 7380-2 | 10.9 | M 3 - M 12 |  |
Hexagon socket button head screw with flange | ||
| DIN 7500 CE | steel / zinc plated |
M 3 - M 6 |  |
Thread rolling screw for ISO metric thread with pan head | ||
| DIN 7500 M | steel / zinc plated |
M 3 - M 6 |  |
Thread rolling screw for ISO metric thread with countersunk head | ||
| DIN 7504 K | steel / zinc plated |
3,9 - 6,3 |  |
Drilling screw with tapping screw thread hexagon head with collar | ||
| DIN 7984 | 08.8 | 10.9 | M 3 – M 20 |  |
Hexagon socket head cap screw with low head | |
| DIN 7991 ISO 10642 |
08.8 | 10.9 | M 2 - M 24 |  |
Hexagon socket countersunk head screw | |
| ISO 14579 | 08.8 | M 5 – M 8 |  |
Hexalobular socket head cap screw | ||
| ISO 14580 | 08.8 | M 3 – M 8 |  |
Hexalobular socket head cap screw with low head | ||
| ISO 14581 | 04.8/08.8 | M 3 - M 8 |  |
Hexalobular socket countersunk head screw | ||
| ISO 14583 | 04.8/08.8 | M 3 - M 8 |  |
Pan head screw with hexalobular socket | ||
| ISO 14585 | steel / zinc plated |
2,9 - 4,8 |  |
Pan head tapping screw with hexalobular socket | ||
| ISO 14586 | steel / zinc plated |
2,9 - 4,8 |  |
countersunk tapping screw with hexalobular socket | ||
| ISO 15481 | steel / zinc plated |
3,5 - 4,8 |  |
Drilling screw with pan head with hexalobular socket | ||
| ISO 15482 | steel / zinc plated |
3,5 - 4,8 |  |
Drilling screw with countersunk head with hexalobular socket |
system
Support for your C-parts management to ensure maximum delivery supply
"System" is achill’s support and service programme. It provides customer solutions as well as a comprehensive range of services to our partners.
In short, we support your C-parts management. This involves everything that goes beyond standard delivery.
- Filling of Kanban containers or KLT boxes for fully automatic storage
- Individual and customised standard and special parts
- Direct deliveries and third-party deals
- Framework or fixed-price agreements
- Parts from drawings and special components
- Customer-specific packaging and labelling
- Modification of blanks or bearing screws
- Subsequent coating service
- Ultra-fast manufacturing
We can respond very flexibly to customer requirements and deliver within an hour, if required, thanks to our manual logistics system.
automotive

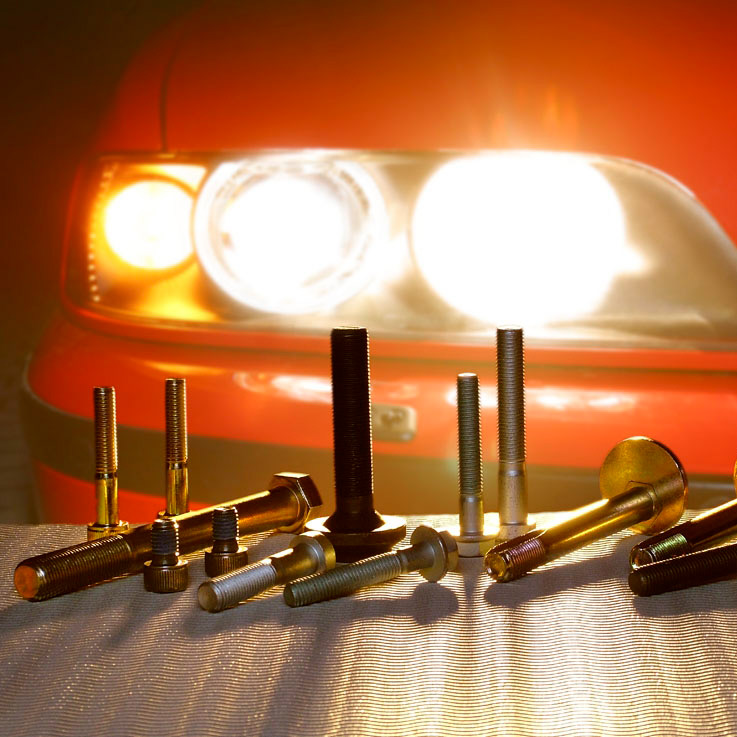

achill automotive fasteners
achill delivers to the automotive supply industry as a wholesaler for fasteners. Producers of trailer couplings and industrial truck, warehousing and material flow technology rely on our stocking and procurement programme for automotive spare parts. We also manufacture to drawings, OE numbers, and DIN and ISO standards. achill also manufactures small-series special, turned and milled parts based on drawings.
We supply the following C-parts to fit all popular automotive brands:
- Spring studs
- Cardan shaft bolts
- Wheel studs and nuts
- Cylinder head screws
- Other automotive fasteners, like locking nuts, shims and spring washers
- Truck axle nuts and screws
achill supplies the following in all common steels, non-ferrous metals and plastics, including different coatings and hardnesses – from a single item to large-scale series – all with fast delivery times:
- Turned parts with diameters ranging from 0.5 mm to 600 mm and lengths up to 2000 mm
- Milled parts up to 1000 mm x 2000 mm – also with five-axis machining
